Legacy Audio · Lifestyle Series
Compact two-way on-wall with 4-inch AMT tweeter and 7-inch carbon fiber woofer. Low-profile surround and Atmos speaker.
Have questions? Dave responds personally, typically within 24 hours. No pressure, just honest advice.
Ships directly to your door.
All sales are final. Legacy Audio products are built to order. We strongly recommend speaking with Dave before purchasing to ensure the right fit for your room and listening preferences. Read our full sales policy

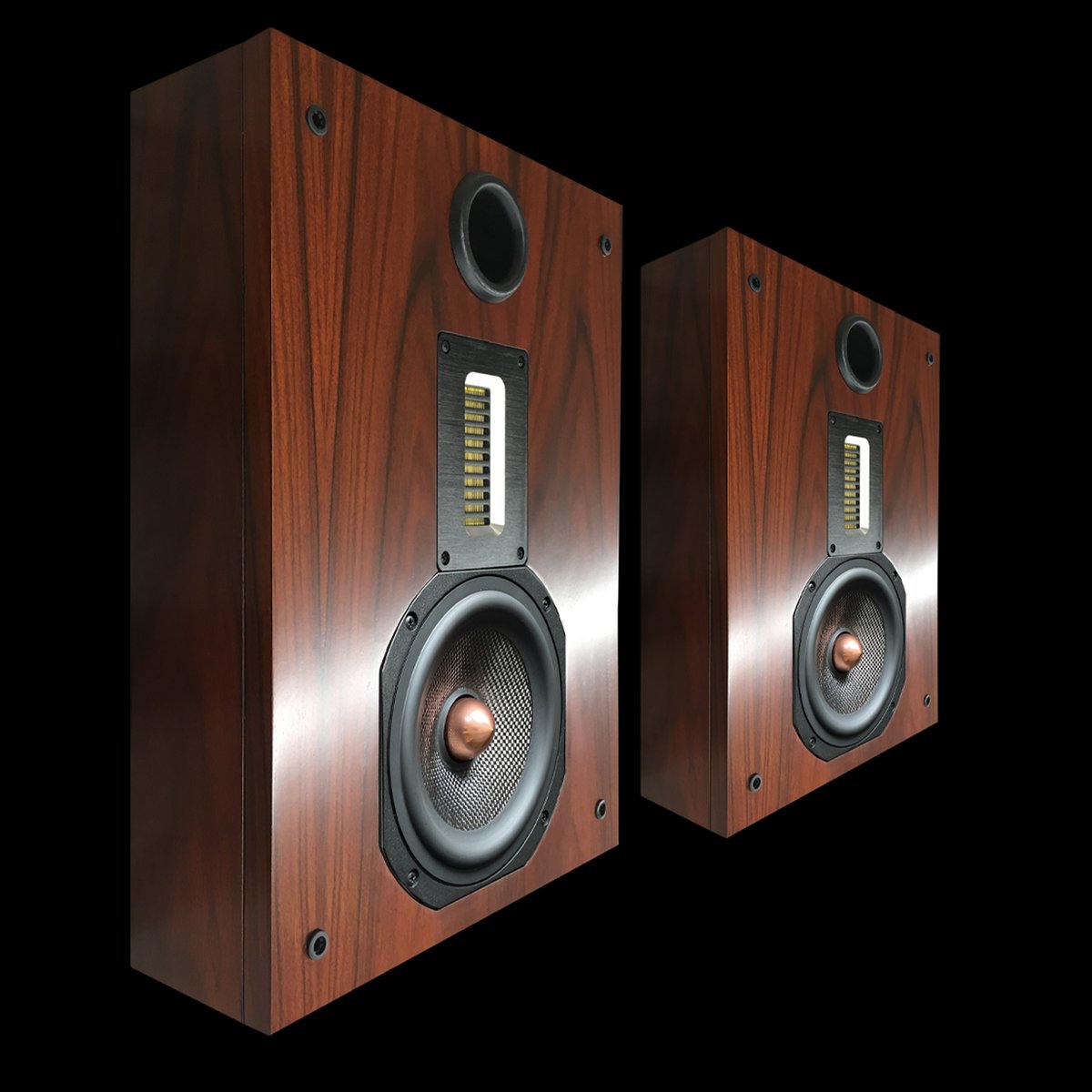

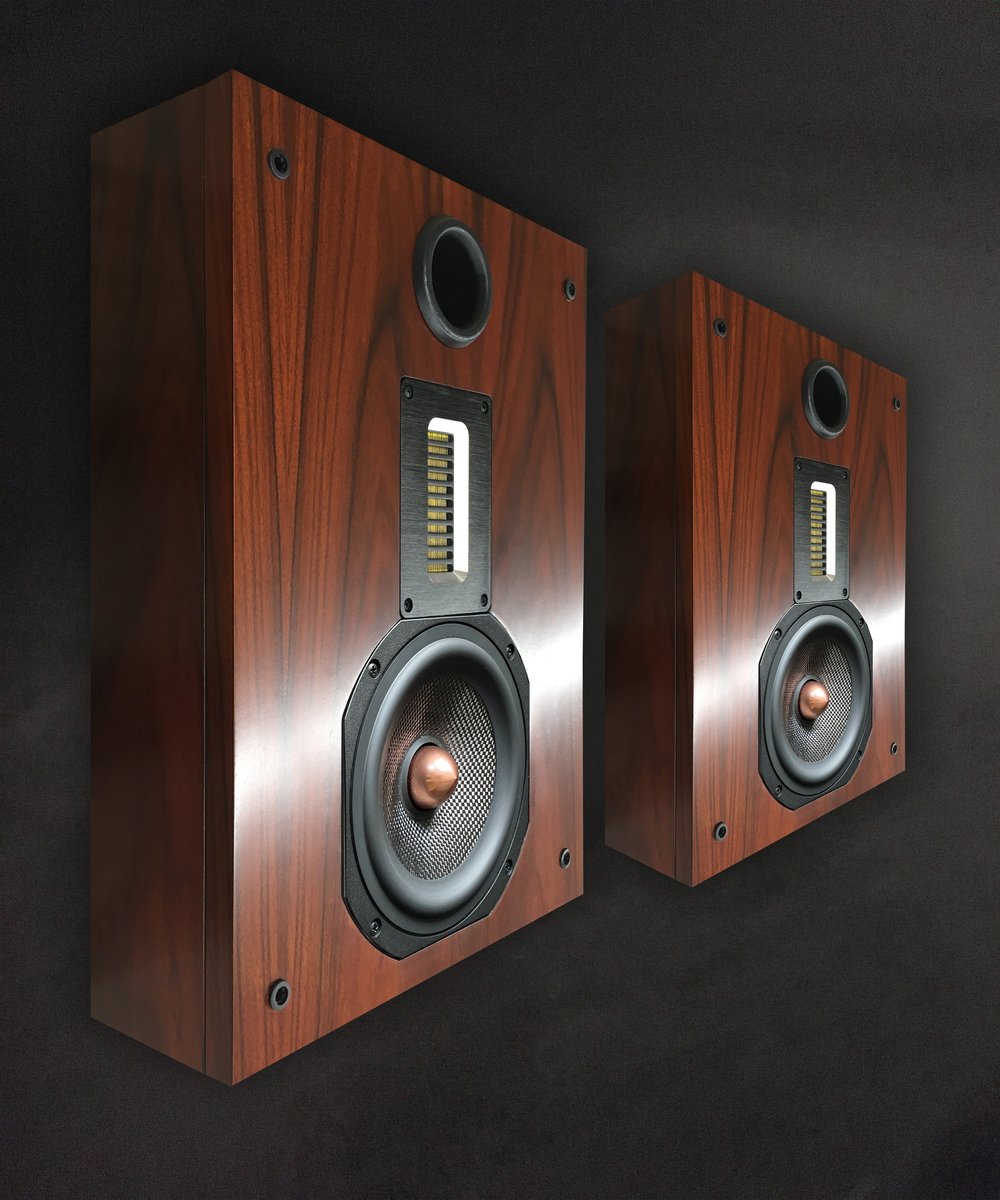

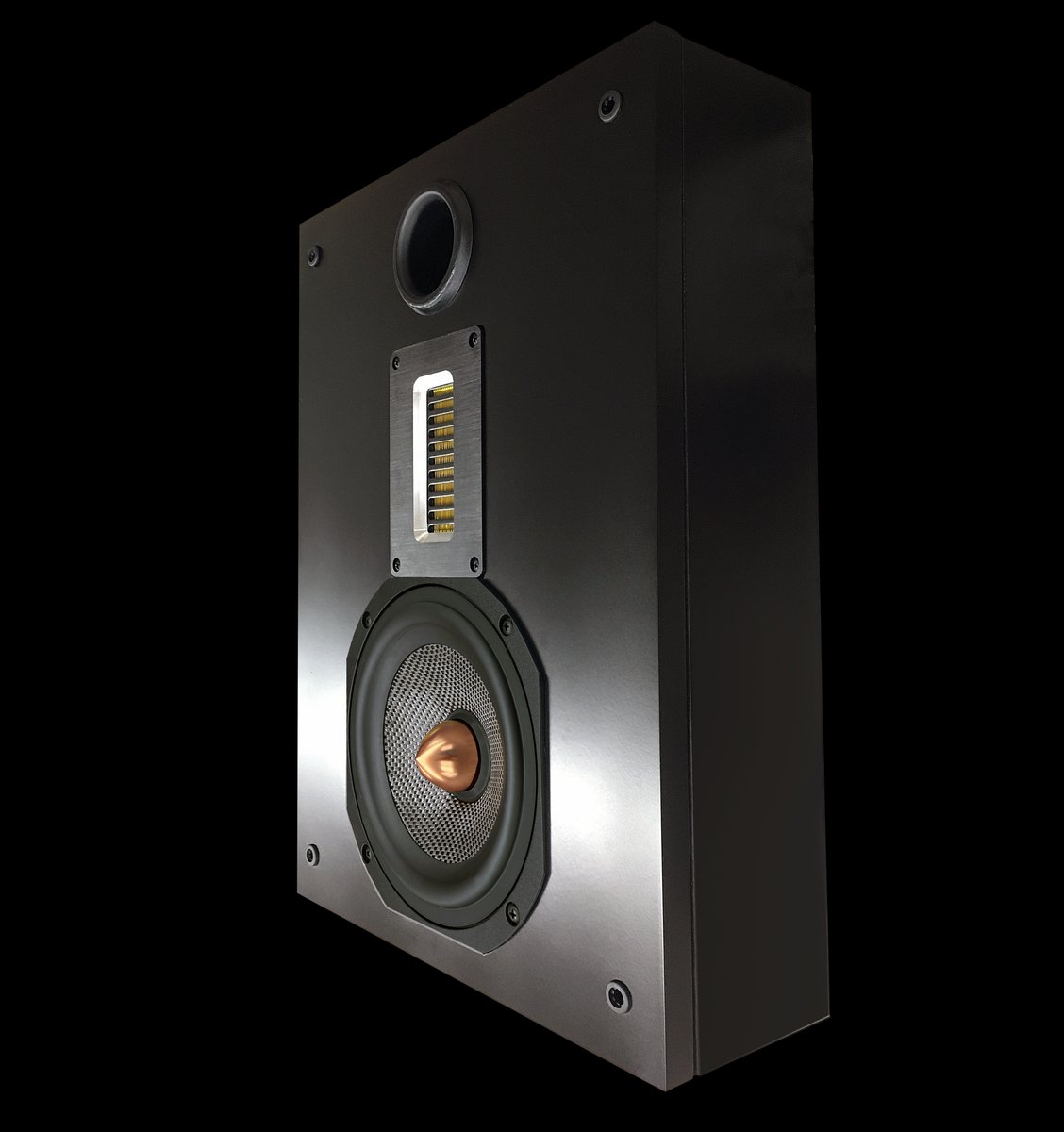

The Pixel On-Wall is Legacy's most compact wall-mount speaker, designed for installations where space is at a premium. A two-way design pairs a 4-inch AMT folded ribbon tweeter with a 7-inch graphene-filled carbon fiber woofer for performance that belies the small enclosure. Applications include home theater surround channels, Dolby Atmos height speakers, and two-channel systems. The concealed aluminum bracket provides a clean wall installation.
From the Manufacturer
Complete specifications and product details from Legacy Audio.
Opens as PDF in a new tab
The Legacy Audio Pixel On-Wall at $4,500 per pair is Legacy's most compact wall-mount speaker, and it proves that the AMT tweeter's magic doesn't require a large enclosure to be convincing. This two-way design pairs a 4-inch AMT folded ribbon tweeter with a 7-inch graphene-filled carbon fiber woofer in a cabinet just 17.8 inches tall, small enough for Dolby Atmos height channels, surround positions in tight rooms, and discrete installations where visual impact must be minimal.
Despite its compact dimensions, the Pixel On-Wall delivers performance that surpasses many larger bookshelf speakers. The 4-inch AMT tweeter is the same technology used across Legacy's entire lineup, providing the speed, detail, and spatial quality that defines the Legacy sound. The 7-inch carbon fiber woofer produces usable output down to 60Hz, not full-range, but sufficient for surround duties and surprisingly satisfying for music in smaller rooms.
The Pixel On-Wall was designed with modern immersive audio formats in mind. Dolby Atmos and DTS:X systems use height speakers to create a three-dimensional sound field, and those height speakers need to be compact enough to mount near the ceiling without dominating the room visually. The Pixel On-Wall's concealed aluminum mounting bracket provides a clean installation that virtually disappears against a white or painted ceiling.
For surround channels in rooms where wall space is limited (between windows, in hallways, above doorways), the Pixel On-Wall fits where larger speakers cannot. At 26 pounds per speaker and 4.41 inches deep, it's light enough for ceiling mounting and slim enough to maintain a low profile in any installation context.
The 90 dB sensitivity and 4-ohm impedance make the Pixel On-Wall compatible with virtually any home theater amplifier or receiver. Legacy recommends at least 25 watts per channel, which means even entry-level surround receivers have sufficient power for the Pixel's role in a multichannel system.
The Pixel On-Wall is typically part of a larger Legacy Audio home theater installation. A common configuration uses Focus XD or Aeris XD towers for the front left and right, a Marquis or Element XD center channel, Silhouette On-Walls for the side surrounds, and Pixel On-Walls for the rear surrounds and height channels. This creates an immersive system where every speaker uses Legacy's AMT tweeter technology, ensuring seamless tonal matching across the entire sound field.
Dave designs and installs complete Legacy theater systems, and the Pixel On-Wall is a key building block that allows him to place speakers exactly where the system needs them without the placement constraints that larger speakers impose. The result is an immersive audio experience that serves the room's acoustics rather than compromising for the sake of speaker size.
Experience It First
Every room is different. Dave will bring the Pixel On-Wall to your home, set it up, and let you hear the difference for yourself. No pressure, no obligation, just great sound.
Based in Glendale, AZ. Serving Scottsdale, Paradise Valley, Phoenix, and clients nationwide.
